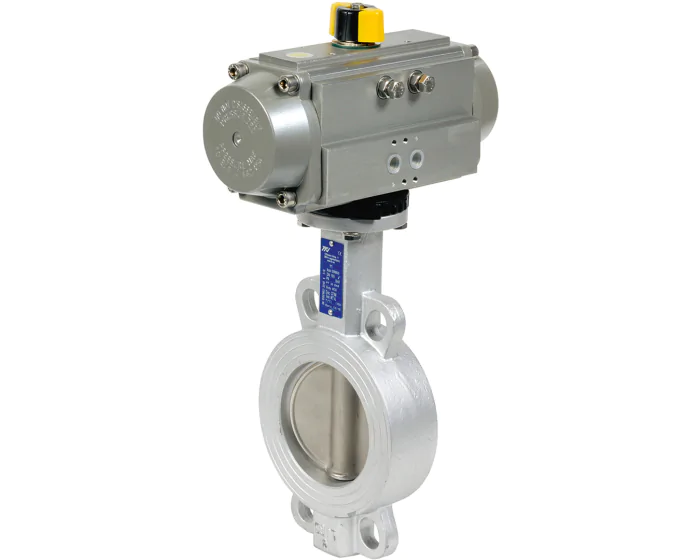

The 1111 wafer double offset butterfly valve has a carbon steel body, a stainless steel disc and a metal seat (incomplete tightness). It is actuated with a pneumatic actuator from ALPHAIR. Between flanges PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | Metal/metal |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 Double acting | 263003017006R | S1002821 |
€299.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 Spring return | 263003017107R | S1002822 |
€335.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN50 - 2'' Double acting | 263004017006R | S1002823 |
€301.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN50 - 2'' Spring return | 263004017107R | S1002824 |
€339.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 Double acting | 263005017007R | S1002825 |
€316.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 Spring return | 263005017108R | S1002826 |
€396.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN80 - 3'' Double acting | 263006017007R | S1002827 |
€347.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN80 - 3'' Spring return | 263006017108R | S1002828 |
€426.03
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN100 - 4'' Double acting | 263007017008R | S1002829 |
€399.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN100 - 4'' Spring return | 263007017109R | S1002830 |
€487.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN125 - 5'' Double acting | 263008017008R | S1002831 |
€469.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN125 - 5'' Spring return | 263008017110R | S1002832 |
€629.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN150 - 6'' Double acting | 263009017009R | S1002833 |
€591.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN150 - 6'' Spring return | 263009017111R | S1002834 |
€979.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN200 - 8'' Double acting | 263010017010R | S1002835 |
€795.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN200 - 8'' Spring return | 263010017112R | S1002836 |
€1,016.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) Double acting DN250 - 10'' | 263011017011R | S1002837 |
€1,203.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) Spring return DN250 - 10'' | 263011017113R | S1002838 |
€1,652.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) Double acting DN300 - 12'' | 263012017012R | S1002839 |
€1,567.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) Spring return DN300 - 12'' | 263012017115R | S1002840 |
€2,568.41
(excl. btw)
|
add to cart |
